detail
| Product Model： | PL 2521500-B |  |
|

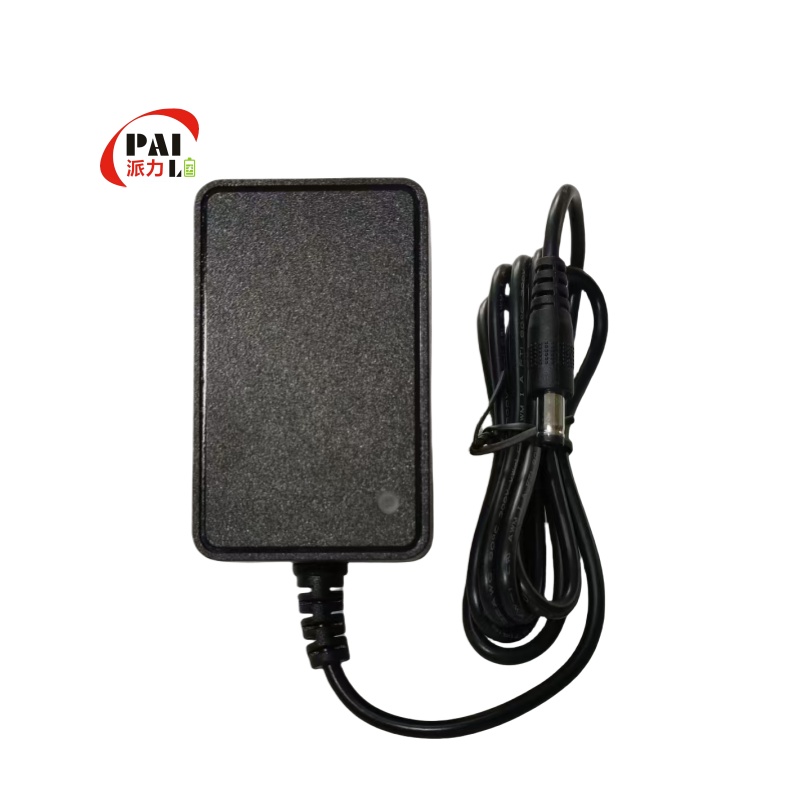

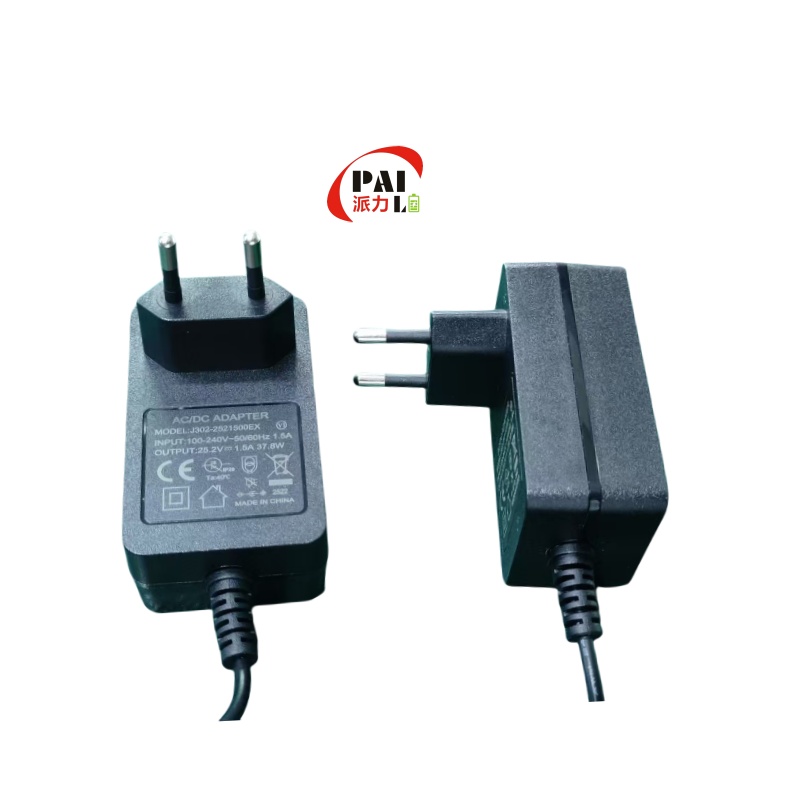

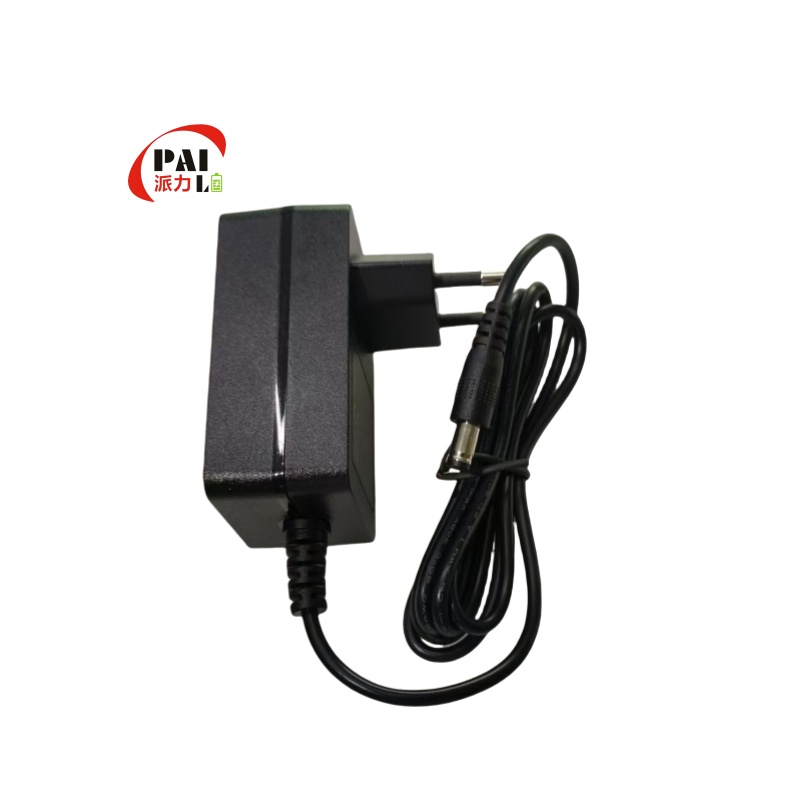

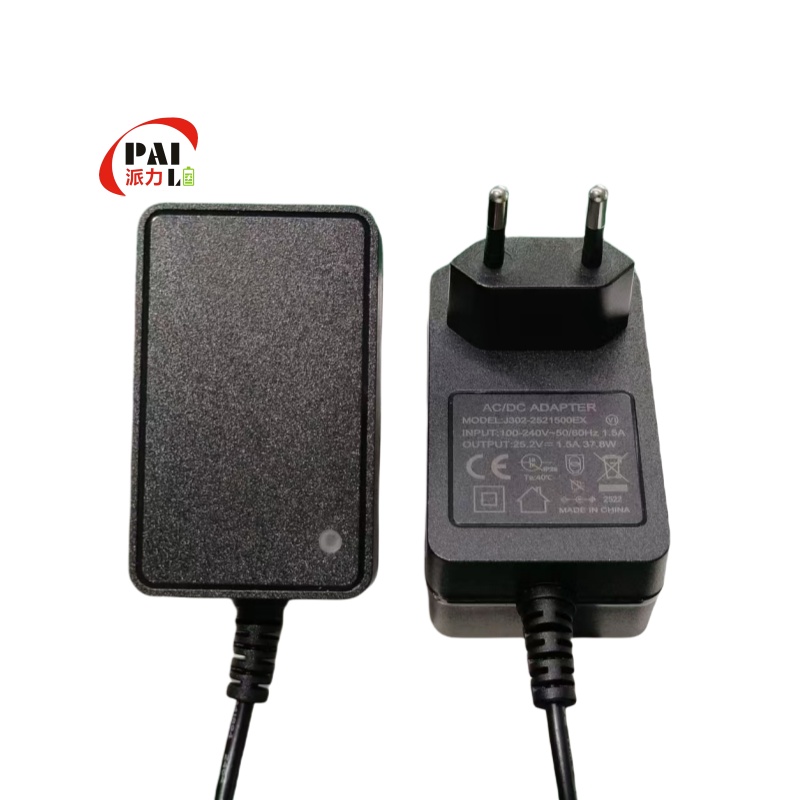

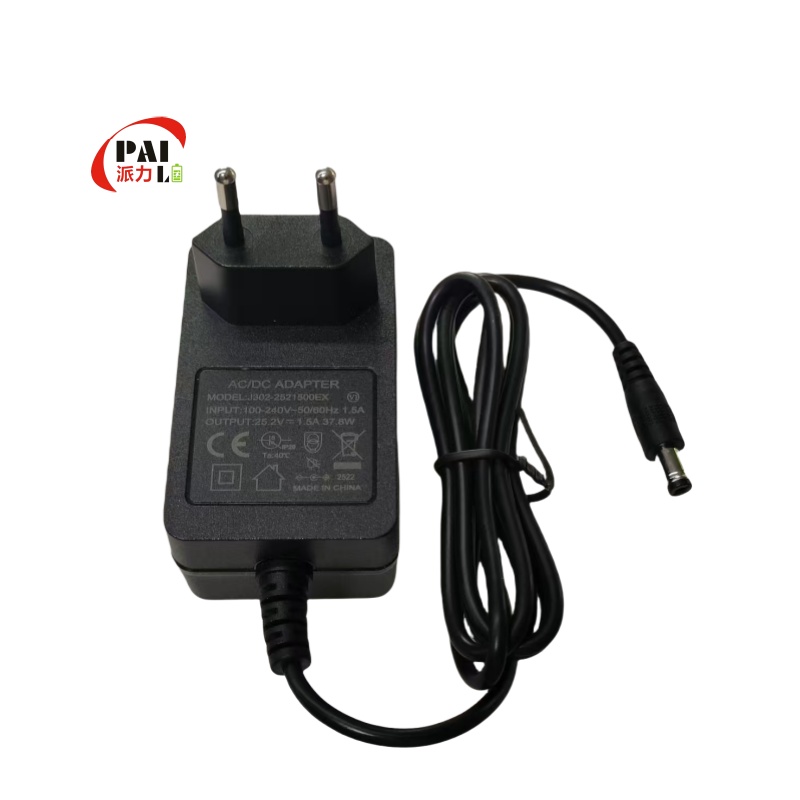

| Product Application： | AC-DC 25.2V 1.5A Li-ion Battery Pack Charger Adapter, Smart Li-ion Battery Charger Adapter | ||
| Input Voltage： | Wide voltage 100-240Vac, 50-60Hz | ||
| Output Voltage： | 25.2V (Rechargeable with in 12-25.2V range) | ||
| Output Current： | 1.5A | ||
| Efficiency Requirement： | ＞86％ | ||
| Protection Requirement： | Input overcurrent protection, output overvoltage, undervoltage, overcurrent, short circuit, overtemperature protection | ||
| Product Dimensions： | L73x W42.5x H28mm | ||
| Input Interface： | American, European and national standard 3-pin socket, equipped with a 1-meter power cord; | ||
| Output Interface： | DC5.5＊2.1＊10mm plug, cable length 1.0m | ||
| Product Weight： | About 350g | ||
| Operating Temperature： | -20~+45℃ | ||
| Storage Temperature： | -25~+85℃ | ||
| Charging Status： | Power indicator, charging status indicator (charging red light/full green light) | ||
| Heat Dissipation Method： | Plastic shell, natural air cooling | ||
| Product Features： | |||
产品特点说明等等，这这里添加
Product advantages
- Different Size: Type and Capacity are selectable Easy matching-up
- Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
- Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
- Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
- High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
