detail

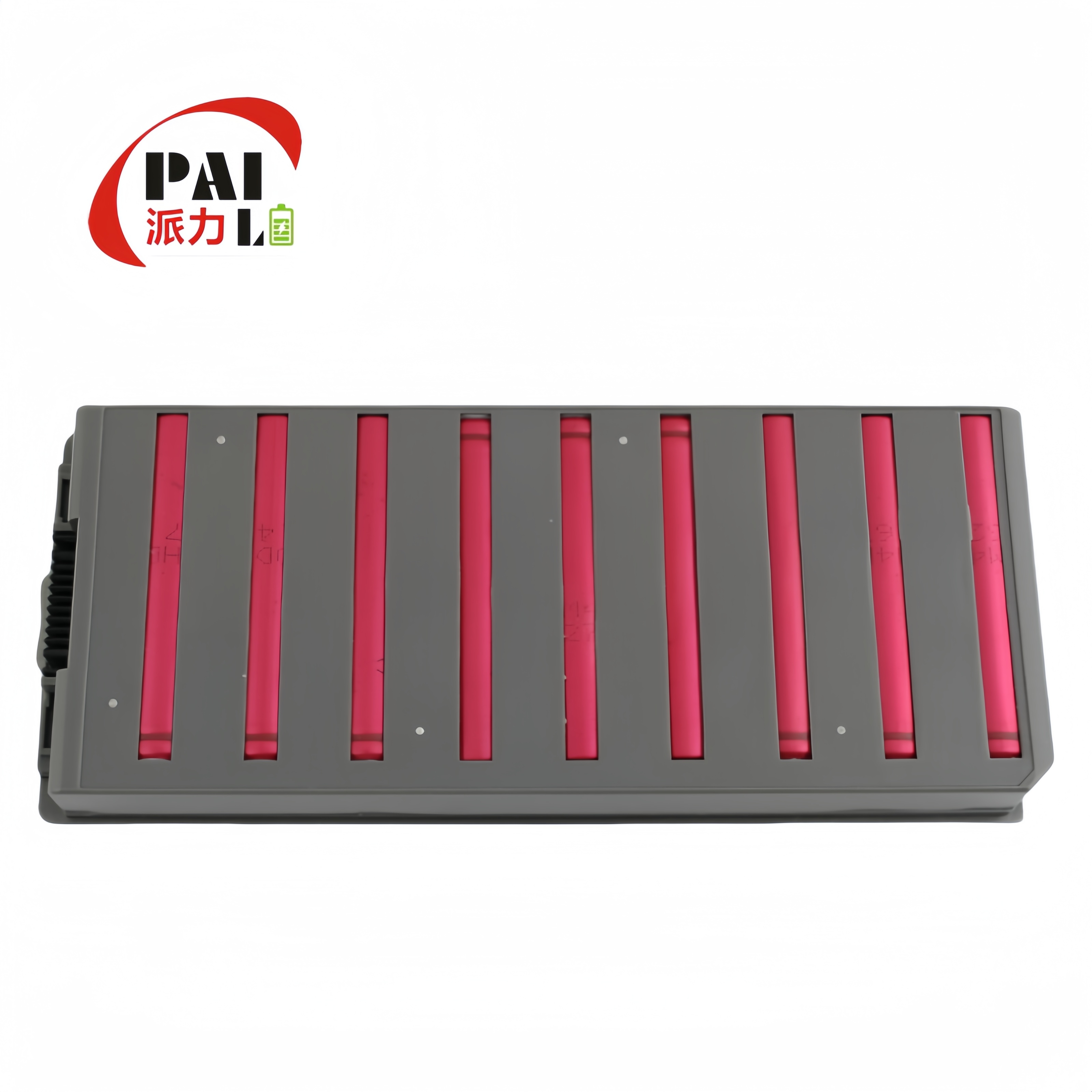

| Product Number | PL 18650 3S3P |  |
|
| Cell Model | INR18650 3.7V 2500mAh | ||
| Battery Specification | 18650 3S3P 11.1V 7500mAh | ||
| Nominal Voltage | 11.1V | ||
| Nominal Capacity | 7500mAh | ||
| Charging Voltage | 12.6V | ||
| Charging Current | ≤1C | ||
| Discharge Current | ≤1C | ||
| Instantaneous Discharge Current | ≤2C | ||
| Discharge Cut-off Voltage | 8.25V | ||
| Internal Resistance of Finished Product | ≤200mΩ | ||
| Battery Weight | ≤1kg | ||
| Product Size | MAX 26＊55＊150mm | ||
| Charging Temperature | 0～45℃ | ||
| Discharge Temperature | -20～60℃ | ||
| Storage Temperature | -20～45℃ | ||

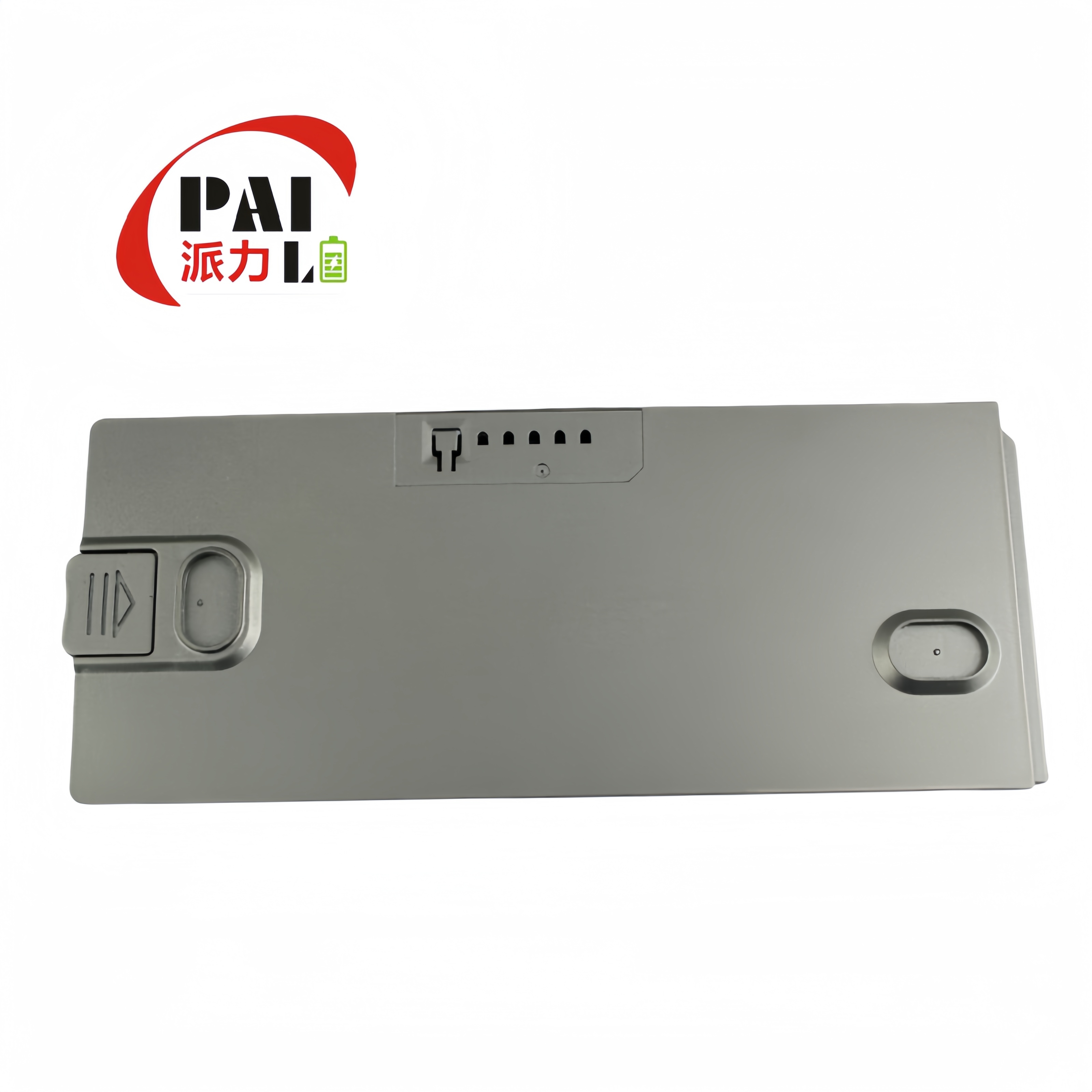

| Battery Housing | Plastic shell, ultrasonic welding process | ||
| Intelligent Lithium Battery Protection | SMBus protocol, over-current/over-voltage protection, over-charge/over-discharge protection, short-circuit protection, internal balance, power monitoring ETC | ||
| Application Field | Medical equipment and instrumentation lithium battery pack, SMBus battery management | ||
Adopting SMbus communication protocol, it can read battery power, temperature, voltage, charge and discharge status, and usage times, and realize personalized functions such as charge and discharge protection, temperature protection, overcurrent protection, short circuit protection, and voltage balancing;
The battery pack has low self-power consumption, reliable performance, safety and stability, and battery management;
The battery pack has a long cycle life, which conforms to the value concept of low carbon, energy saving, and environmental protection;
Product advantages
- Different Size: Type and Capacity are selectable Easy matching-up
- Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
- Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
- Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
- High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
